Dunkermoteren

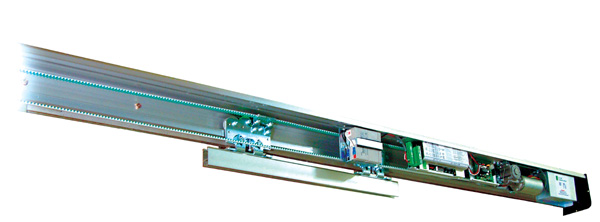

Dunker series, the latest automatic doors that driven by German dunkermotoren driving unit, providing prior consideration of the user's safety and convenience. With the-state-of-the-art technology, users would be enjoyed in working smoothly, quietly and automatically with excellent stability and durability.
The operator built in with intelligences and protective devices. The automatic door control system has installed the latest generation microprocessors, end users only choose the opening speed and opening time, the automatic door throught provides the best operation.
| F
E A T U R E S |
SINGLE
SLIDEING |
DOUBLE
SLIDING |
| Model |
DK-150 |
DK-200 |
| Power
supply |
AC 220V (50 - 60 Hz) |
|
| DC Gear motor | German Dunkermoteren GR63 x 55 |
|
| Maximum door weight | 1 x 150 kg |
2 x 125 kg |
| Standard AL rail length | 2000 mm |
4000 mm |
| Minimum clear opening width | 650 mm |
900 mm |
| Maximum clear opening width |
1500 mm |
3000 mm |
| Opening speed | 150
- 650 mm/sec (adjustable) |
|
| Closing speed | 100
- 400 mm/sec (adjustable) |
|
| Hold open time | 0.5
- 60 sec (adjustable) |
|
| Opening width | 100%
- 70% |
|
| Safety function | Safety
reverse and safety stop |
|
| Ambient temperature | -15°C
- + 50°C |
|
